Ballast Water Management System (BWMS)
|
Sinco provides shipowners with one-stop turnkey total design engineering solution for retrofitting of the BWMS from Front-End Conceptual Engineering, 3-D Scanning & Modelling, to Detailed Design Engineering for Class approval and pre-fabrication.
Authorised aftersales service partner, design engineering partner, and authorized representative, agent & partner of several renowned manufacturer :-
|
- Headway OceanGuard Ⓡ BWMS
- Hanla EcoGuardian™ Ballast Water Treatment System

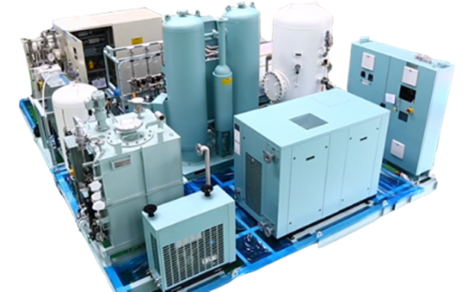

- NK-O3 Blue Ballast System Water Treatment

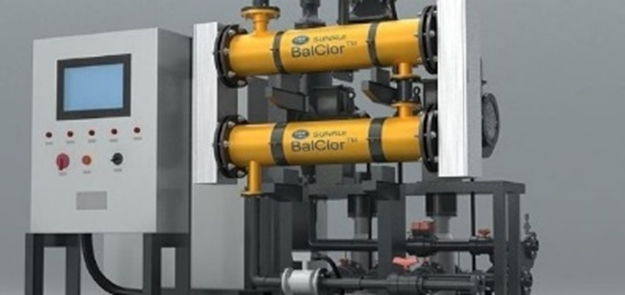

- Sunrui Balchlor Ballast Water Management System
|
|
|
|
Why BWMS
- Shipping moves over 80% of world’s commodities and transfers approx. 3 to 5 billion tonnes of water internationally each year.
- When thousands of marine species carried in ship’s ballast water intake are transported to other parts of the globe, the impact can be devastating and irreversible.
- Such invasion can jeopardise the local ecosystem, and even pose threats to human health.
- This threat has been identified as one of the four greatest threats to the world’s ocean.
- Hence in 2004, IMO adopted the International Convention for the Control and Management of Ship’s Ballast Water and Sediments, which will phase in the Ballast Water Treatment System.
|
|
|
|
|
|
|
Various Challenges Of Retrofitting The BWTS
|
- BWTS Technology Selection
- Right Sizing The BWTS Capacity
- Preliminary Design Engineering (Piping, Electrical, Controls and Interlocking requirements)
- Verify System Fit
- Modelling For Owners Approval
|
|
- Detailed Engineering
- Class Approval
- Pre-Fabrications & Modifications
- On-Site Installation & Commissioning
- After Sales Services
|
|
|
|
|
|
Sinco Provides Front-End Conceptual Design Engineering Services
|
- Assist with BWTS technology assessment and selection
- Study ballasting requirements on ship specific to design BWMS
- Assist in right sizing the BWTS equipment capacity
- Study electrical power, controls and valve inter-locking requirements
- Conduct 3-D scanning, model the lay-out and verify system fit
- Present 3-D overlay modelling and system fit for Owners approval
|
|
|
|
|
|
|
|
|
Sinco Provides Detailed Design Engineering Services
|
- Liaise with BWTS manufacturer for total technical aspects and system integration
- Onboard verification of drawings against as built conditions, review loading plans, cable routing, and penetrations
- Complete layout and pipe modifications design engineering
|
|
- Develop electrical and ballast controls modifications design engineering
- Develop detailed piping modification design engineering
- Develop detailed fabrication drawings
- Liaise with Class for review and approvals
|
|
|
|
|
|
|
|
Added Services By Sinco
|
- Assist with pre-fabrication
- Support on-site supervision for installation and commissioning
|
|
- After-Sales support services
|
|
|
|
|
|
Sinco is associated with 4 key BWMS technologies :-
|
| Electrolysis
|
|
|
|
|
|
|

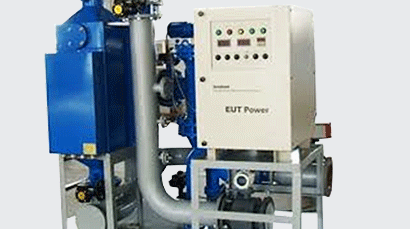

| Headway OceanGuard System - Advanced Electrocatalysis Oxidation Process (AEOP) and is installed by in-line method
|
|
|
|
|
|
|

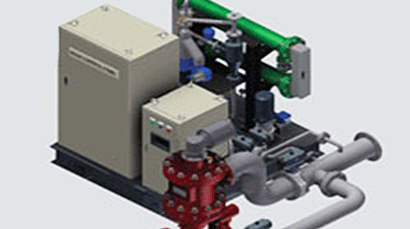

| Hanla EcoGuardian System - Electrochlorination is installed by side-stream method
|
|
|
|
|
|
|
|
|
|
|
|
|
Letter of Authorization
|
|
|
