Brannstrom Sweden AB

Brannstrom Sweden AB was founded in 1985 and renowned for its Oil Discharge Monitoring Equipment (ODME) CleanTrack 900 & CleanTrack 1000, the OWS BilgMon 15 PPM Bilge Alarm Monitoring Unit and the BTM-2000 Turbidity Meter.


Oil Discharge Monitoring Equipment (ODME)

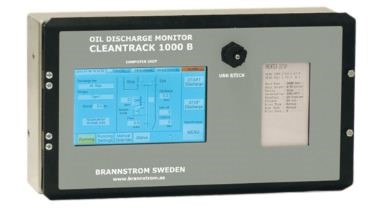

The Oil Discharge Monitoring Equipment (ODME) type CLEANTRACK 1000B is a new Fourth Generation ODME, based on a well proven concept further developed to meet the special demands of the latest trends in shipbuilding.
  • Basic approvals according to MEPC.108(49) as amended by MEPC.240(65)
  • Approved also for all Bio-fuel blends according to MEPC1./Circ.761 Rev.1
  • Further approved for more Bio-fuel blends as per MEPC.2/Circ.21
  • Compact and simple installation with less cabling & piping
  • No need for permanent fresh water connection
  • Easy replacement of smart measuring cell
  • Power supply 115/230VAC 1-phase and 380/440VAC 3-phase or Air supply
  • Data retrieval via LCD display, USB port, or optional printer




15PPM Bilge Alarm

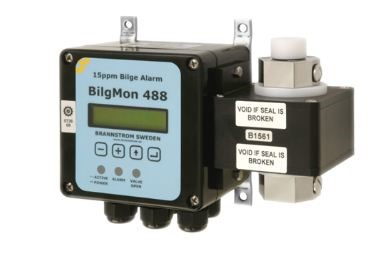

The 15PPM Bilge Alarm type BILGMON 488 is type approved to meet the requirements of IMO Resolution MEPC.107(49), and with its small dimensions it is ideal also for retrofit on existing separators. The smart detachable measuring cell with wireless communication is easy to remove and replace with a newly calibrated cell, if this is preferred to having the system accuracy checked on board.
  • Oil content range 0 – 30ppm (current output 0-20mA or 4-20mA)
  • Approvals according to MEPC.107(49)
  • Power supply 115/230 VAC or 24V AC/DC
  • Measuring cell with wireless communication, easy to replace
  • Automatic fresh water flushing
  • User interface LCD display and keypad
  • Data retrieval via LCD display or USB port
  • Supplied complete with 3-way flushing valve, piping set, connectors
