DaeMyung Elevator Co. Ltd (DELCO)
|
| Daemyung elevator Co., Ltd.(DELCO) established in 1985 year, are organized for all customers who need the high quality, the professional service, and the most advanced technical supports for marine elevator and started installation and after sales service of marine elevator. DELCO have expanded its installation and service of marine elevator to all aspects of global marine elevator and diversified its business by introducing Dumb waiter and developing passenger elevator for marine & industrial lift. |
|
| |
 |
| |
Marine Elevator
|
BUSINESS PARTS
PRODUCTS |
| |
Passenger Elevator
|
 |
- Capacity : at least 300kg
- Velocity : 60m/min - 90m/min
- Type : Traction machine Type
- Materials of elevator interior : SUS304 or SUS316
- Elevator car doors : Central opening automatic doors
- Elevator outside doors : A0-A60 firefighting doors
- Safety devices : Interlock, Overload device, Limit switch, Over-speed governor
- Classification : Entire classicfications are covered
|
| |
|
 |
|
 |
|
 |

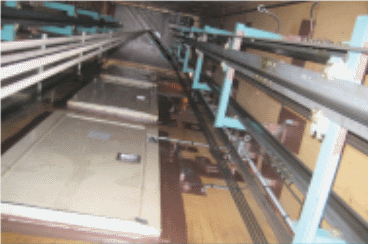

| Internal Structure of elevator Hall |
|

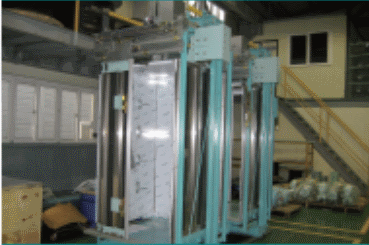

Elevator Car |
|
Elevator Control Panel |
|
|
| |

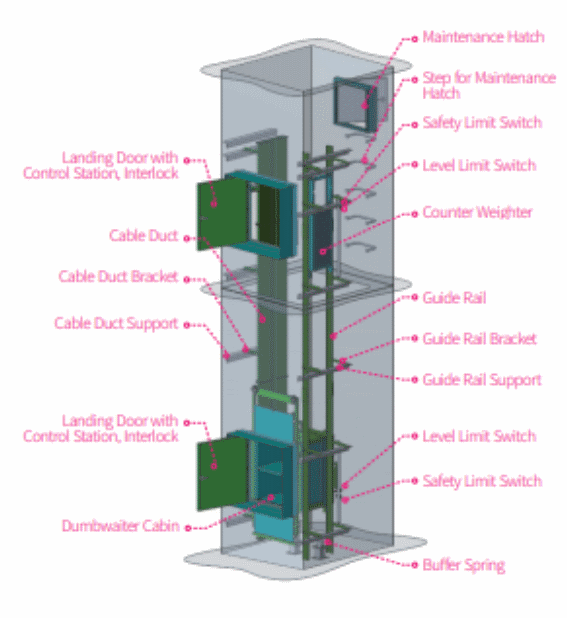

Dumbwaiter
|
| |
- Capacity : 50kg ~ 500kg
- Velocity : 25m/min
- Type : Traction machine Type, Winch drum Type
- Materials of elevator interior : SUS304 or SUS316
- Elevator car doors : Up-and-Down Sliding doors
- Elevator outside doors : A0-A60 firefighting doors
- Safety devices : Interlock, Overload device, Limit switch
- Options : Over-speed governor, Classification
|
 |
|
 |
|
 |

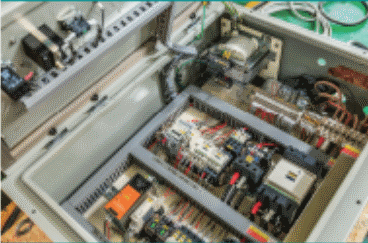

| Control Panel |
|
Car |
|
Interlock |
|
|
|
 |
|
